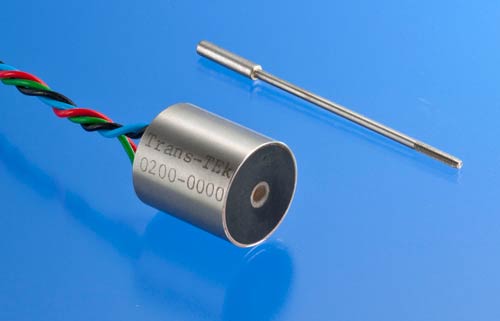

Series 200

Short Stroke DC LVDTs

  • Ranges from ±0.05” to 0.20”
  • High Sensitivity
  • Non-linearity < 0.5%, 0.3%
  • Stainless Steel Construction

The Series 200 DC-DC LVDTs are precision Linear Variable Differential Transformers packaged with a solid state oscillator and a phase sensitive demodulator. The transducer is designed to work with DC voltages, and has excellent linearity, infinite resolution, and high sensitivity. Input and output circuits are electrically isolated from each other and from the coil assembly housing, making them usable directly in floating or ground return systems. DC indicators, recorders, and control systems can usually be driven directly by the large DC output. The core, when displaced axially within the coil assembly, produces a voltage change in the output directly proportional to the displacement.

Specifications - Electrical

MODEL0200-000000200-000100201-000000201-00010
RANGE, ±Inches (±mm)0.050(1.27)0.50 (1.27)0.100 (2.54)0.100(2.54)
INPUT, VDC7 Max, 5 Min
INPUT, mA20203535
OUTPUT, FULL SCALE OPEN CIRCUIT, ±VDC1.51.52.82.8
LINEARITY, ±FULL SCALE, %0.50.30.50.3
INTERNAL CARRIER FREQUENCY9KHz
MAX RIPPLE, RMS/VDC Output Range0.70%
OUTPUT IMPEDANCE, KOhms2.22.233
FREQ. RESPONSE (3 dB down), Hz350350170170
TEMPERATURE RANGE-65°F to +140°F  (-54°C to +60°C)
RESOLUTIONInfinite

Notes:

  1. Polarity of excitation must be observed for proper function. Reversal will not damage the unit.
  2. Load Impedance of 50 KOhms minimum required for proper operation.
  3. Output polarity will be positive on one side of null, negative on the other side of null.
  4. Blue lead is more positive with respect to the Green lead when the core is moved toward the lead end.


Specifications - Mechanical

MODEL*LINEAR RANGE
±Inches (mm)
BODY LENGTH, A
Inches (mm)
ELECTRICAL CENTER, Ec
Inches (mm)
BODY MASS
Grams
CORE LENGTH, B
Inches (mm)
EXTENSION LENGTH, E
Inches (mm)
0200-0000__ 0.05 (1.27)0.81 (20.6)0.32 (8.13) 210.56 (14.2)1.9 (48.3)
0200-0001__0.05 (1.27)0.81(20.6)0.32 (8.13)210.56 (14.2)1.9 (48.3)
0201-0000__0.10 (2.54)1.06 (26.9)0.44 (11.2)260.81 (20.6)1.9 (48.3)
0201-0001__0.10 (2.54)1.06 (26.9)0.44 (11.2)260.81 (20.6)1.9 (48.3)

* Model numbers ending with a “_” have multiple core options. All standard units will end with a 0 indicating a core assembly. This core assembly consists of a core brazed to an extension rod that terminates in 1-72 UNF-2A threads. If an option is not selected, option 0 will be provided. Option 1 indicates a core assembly with a smaller core. Core options 2 and 3 provide a threaded core only. A separate extension rod can be used to connect the core to the moving object.

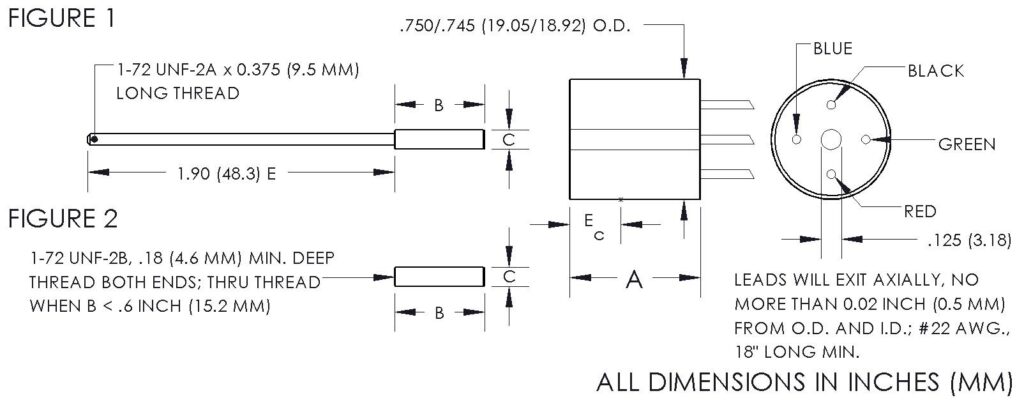

Dimensional Diagram

Trans 200 Diagram

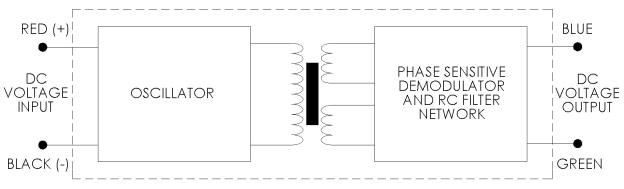

Block Diagram

TRANS 200 block diagram

Core Options

Core Assembly Ref Fig. 1Threaded Core Ref Fig. 2
OPTION 0OPTION 1OPTION 2OPTION 3
MODEL*C = 0.120″(3.05mm) C = 0.099″(2.51mm)C = 0.120″(3.05mm)C = 0.099″(2.51mm)
0200-0000__C004-0000C004-0001C005-0002C005-0003
0200-0001__C004-0000C004-0001C005-0002C005-0003
0201-0000__C004-0002C004-0003C005-0006C005-0007
0201-0001__C004-0002C004-0003C005-0006C005-0007

* Model numbers ending with a “_” have multiple core options. All standard units will end with a 0 indicating a core assembly. This core assembly consists of a core brazed to an extension rod that terminates in 1-72 UNF-2A threads. If an option is not selected, option 0 will be provided. Option 1 indicates a core assembly with a smaller core. Core options 2 and 3 provide a threaded core only. A separate extension rod can be used to connect the core to the moving object.



Sale Options

Option#Description
X0002Splashproof – protects the unit from washdown environments or outdoor applications
X0004Modify length of the extension rod from 1.9” to user specified length; specify as Dimension E
X0010Option cable termination; eight feet of 4 conductor, 22 AWG, PVC cable
X0011Provide an offset and scaled output voltage; special connector and mating connector included; used only with load impedances of 1 Megaohm or greater; input voltage and scaling parameters must be specified
X0017Modify unit for use in any noncorrosive, nonconductive medium, such as hydraulic fluid, for pressure < 5000 PSI; housing is vented
X0023Install second brazed extension rod to user specified length; specify as Dimension E
X0025Optional MS-style connector termination. Increases O.D. to 1.00”; mating connector supplied
X0040Optional cable termination; eight feet of 4 conductor, 22 AWG, Teflon cable; temperature range increased to -65°F to +250°F (-55°C to +121°C)

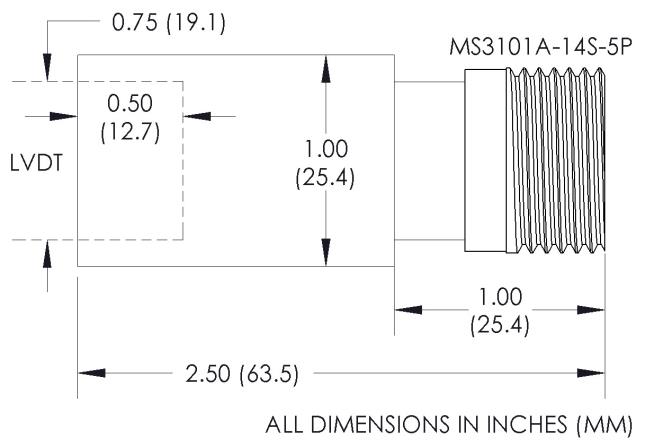

Option X0025

200 option X0025
