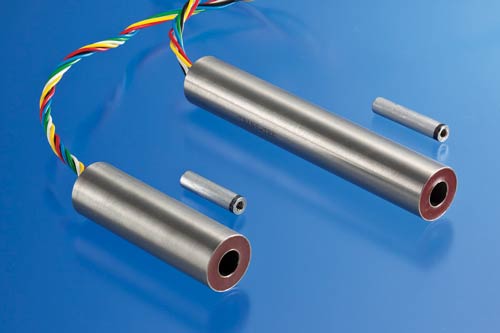

The Series 210-220 AC LVDTs offer precision linear displacement measurements for applications with strokes from 0.5 to 60 inches. The transducers have been designed with an extremely low temperature coefficient, and non-linearity of less than ±0.25% F.S. Variable pitch secondary windings are incorporated into the design with computer controlled winding machines to minimize package length to stroke ratio, and assure a uniform product.

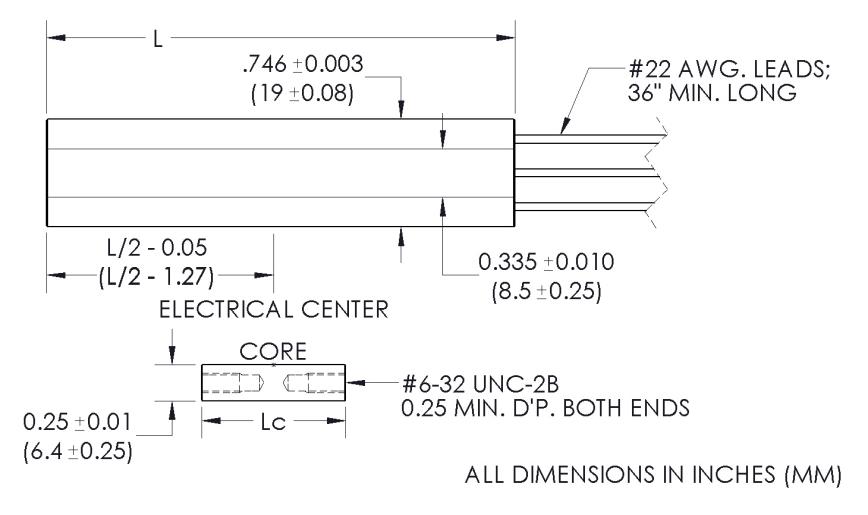

| MODEL | FULL STROKE ±Inches (mm) | MAX. USABLE STROKE ±Inches (mm) | BODY LENGTH, L Inches (mm) | CORE P/N | CORE LENGTH Lc Inches (mm) | CORE MASS Grams | INPUT IMPEDANCE Ohms | DC INPUT RESISTANCE Ohms | OUTPUT IMPEDANCE Ohms | PHASE ANGLE Degrees |
|---|---|---|---|---|---|---|---|---|---|---|
| 0215-0000 | 0.25 (6.4) | 0.65 (16.5) | 2.50 (63.5) | C005-0108 | 1.00 (25.4) | 5.1 | 205 | 22 | 265 | 13 |
| 0216-0000 | 0.50 (12.7) | 0.95 (24.1) | 3.25 (82.6) | C005-0108 | 1.00 (25.4) | 5.1 | 235 | 31 | 310 | 17 |
| 0217-0000 | 1.00 (25.4) | 1.45 (36.8) | 4.50 (114.3) | C005-0113 | 1.25 (31.8) | 6.6 | 195 | 36 | 205 | 19 |
| 0218-0000 | 2.00 (50.8) | 2.70 (68.9) | 7.50 (190.5) | C005-0107 | 1.50 (38.1) | 8.1 | 200 | 46 | 255 | 22 |
| 0219-0000 | 3.00 (76.2) | 3.80 (96.5) | 10.00 (254.0) | C005-0106 | 1.90 (48.3) | 10.9 | 225 | 57 | 285 | 25 |
| 0220-0000 | 5.00 (127.0) | 5.95 (151.1) | 15.00 (381.0) | C005-0105 | 2.50 (63.5) | 14.7 | 360 | 89 | 460 | 31 |
| 0221-0000 | 7.50 (190.5) | 8.45 (214.6) | 21.50 (546.1) | C005-0104 | 4.00 (101.6) | 24.5 | 235 | 55 | 235 | 30 |
| 0222-0000 | 10.00 (254.0) | 11.00 (279.4) | 28.00 (711.2) | C005-0103 | 5.50 (139.7) | 34.4 | 330 | 72 | 285 | 31 |
| 0223-0000 | 15.00 (381.0) | 16.40 (416.6) | 40.00 (1016) | C005-0100 | 7.00 (177.8) | 44.4 | 450 | 57 | 395 | 25 |
| 0224-0000 | 20.00 (508.0) | 21.30 (541.0) | 50.00 (1270) | C005-0100 | 7.00 (177.8) | 44.4 | 660 | 100 | 580 | 30 |
| 0225-0000 | 25.00 (635.0) | 26.20 (665.5) | 60.00 (1524) | C005-0100 | 7.00 (177.8) | 44.4 | 210 | 41 | 355 | 28 |
| 0226-0000 | 30.00 (762.0) | 31.30 (795.0) | 70.00 (1778) | C005-0100 | 7.00 (177.8) | 44.4 | 200 | 45 | 410 | 30 |
| NON-LINEARITY | ≤ ±0.25% FS (Best Fit Straight Line) |
|---|---|
| REFERENCE FREQUENCY | Models 0215-0000 thru 0222-0000, 7.0 KHz; Models 0223-0000 thru 0226-0000, 3.0 KHz |
| SENSITIVITY | 0.50 V/V ±10% at FULL SCALE |
| INPUT VOLTAGE | 20 VRMS, Max. |
| NULL VOLTAGE | < 1.0% Excitation Voltage |
| TEMPERATURE COEFFICIENTS | < ±0.001% FS/°F Zero, < ±0.01% Reading/°F Span |
| TEMPERATURE RANGE | -67°F to +257°F (-55°C to +125°C) Operating -67°F to +275°F (-55°C to +135°C) Storage |
| OUTER HOUSING AND BORE LINER | 300 Series Stainless Steel |
| CORE | Chrome Plated Iron/Nickel Alloy |

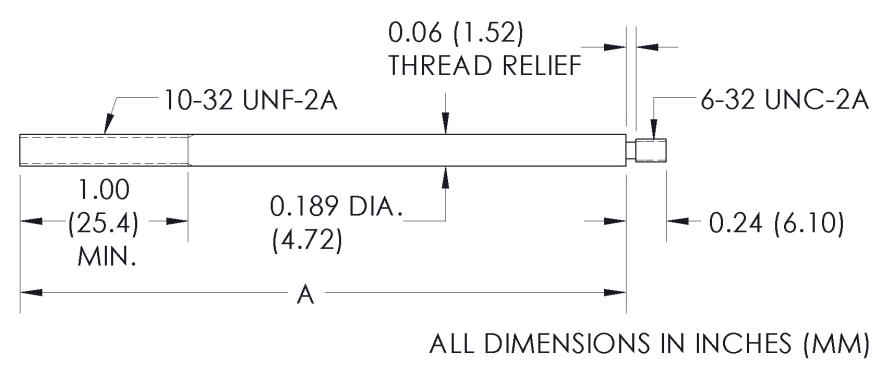

The recommended core extension rods are made of nonmagnetic stainless steel and are sized to allow the transducers to operate over their full range. Extension rods from models with longer strokes may be used to facilitate installation. Using extension rods shorter than recommended may reduce the LVDT’s usable measurement range.
| MODEL | RECOMMENDED CORE EXTENSION ROD | DIMENSION A Inches (mm) |
|---|---|---|
| 0215-0000 | C006-0174 | 3.00 (76.2) |
| 0216-0000 | C006-0175 | 3.60 (91.4) |
| 0217-0000 | C006-0176 | 4.70 (119.4) |
| 0218-0000 | C006-0177 | 7.20 (182.8) |
| 0219-0000 | C006-0178 | 9.30 (236.2) |
| 0220-0000 | C006-0179 | 13.70 (348.0) |
| 0221-0000 | C006-0180 | 19.00 (482.6) |
| 0222-0000 | C006-0181 | 24.20 (614.7) |
| 0223-0000 | C006-0182 | 35.00 (889.0) |
| 0224-0000 | C006-0183 | 45.50 (1156) |
| 0225-0000 | C006-0184 | 56.00 (1422) |
| 0226-0000 | C006-0185 | 66.50 (1689) |
To facilitate prototyping, or in instances where a DC in – DC out system is preferred, any of the standard, high temperature or vented Series 210-220 can be used in conjunction with the Series 1000 Oscillator/Demodulator. The DC system provides the same level of performance as a stand-alone AC LVDT. The high level DC output voltage can be directly interfaced with analog circuits as well as data acquisition cards, PLCs, or A/D converters. Each Oscillator/Demodulator can be customized to provide a zero-offset and nonstandard gain, meeting specific user requirements. Detailed connection information can be found in the Sales portion of the datasheet.
| SELECTED OSCILLATOR/DEMODULATOR | MODEL 1000-0011: MODELS 0223-0000 THRU 0226-0000 MODEL 1000-0012: MODELS 0215-0000 THRU 0222-0000 |
|---|---|
| NON-LINEARITY | < ±0.25% FS (BEST FIT STRAIGHT LINE) |
| INPUT | ±14.5 TO ±28.0 VDC, ±100mA MAX., INTERNAL REGULATION AND INPUT REVERSAL PROTECTION PROVIDED |
| OUTPUT | ADJUSTABLE TO ±5.0 VDC AT END OF LINEAR STROKE, VIA SPAN ADJUSTMENT |
| FREQUENCY RESPONSE (-3dB) | SYSTEMS WITH 1000-0011: 500Hz MIN.; SYSTEMS WITH 1000-0012: 1000Hz MIN. |
| OUTPUT RIPPLE | < 0.03 VRMS MAX. |
| TEMPERATURE COEFFICIENTS | < ±0.0035% FS/°F ZERO, < ±0.02% READING/°F SPAN |
| TEMPERATURE RANGE | LVDT: -67°F TO +257°F (-55°C TO +125°C) OPERATING LVDT: -67°F TO +275°F (-55°C TO +135°C) STORAGE OSC/DEMOD: +32°F TO +158°F (0°C TO +70°C) OPERATING OSC/DEMOD: -67°F TO +257°F (-55°C TO +125°C) STORAGE |
The high pressure version of the Series 210-220 is suitable for operation in nonconductive and noncorrosive fluids or gasses at pressures up to 5000 P.S.I. The vented housing eliminates pressure differentials between the environment and the transducer’s interior, allowing rapid and extrerme pressure changes without damage or degradation in performance.
The high temperature version of the Series 210-220 has been designed to operate in temperatures from -67°F to +400°F. The LVDTs are identical electrically and mechanically to the standard Series 210-220 transducers, providing the same high level of performance and reliability. To achieve the elevated operating temperature, materials such as the epoxy, solder, and magnet wire have been replaced by their high temperature equivalents.
NOTE: All electrical and physical specifications are the same as the standard Series 210-220 LVDTs.
| MODEL NUMBER | STROKE ±Inches (mm) |
|---|---|
| 0215-0004 | 0.25 (6.4) |
| 0216-0006 | 0.50 (12.7) |
| 0217-0006 | 1.00 (25.4) |
| 0218-0011 | 2.00 (50.8) |
| 0219-0015 | 3.00 (76.2) |
| 0220-0012 | 5.00 (127) |
| 0221-0006 | 7.50 (191) |
| 0222-0008 | 10.00 (254) |
| 0223-0006 | 15.00 (381) |
| 0224-0005 | 20.00 (508) |
| 0225-0005 | 25.00 (635) |
| 0226-0004 | 30.00 (762) |
The following options are available with this series of transducer. The option must be specified at the time an order is placed.
| OPTION# | DESCRIPTION |
|---|---|
| X0006 | ±0.10% MAX. NON-LINEARITY |
| X0009 | PROVIDE LONGER LEADS TO A SPECIFIED LENGTH |

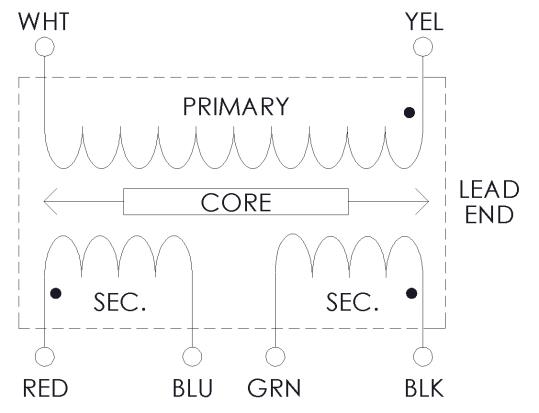

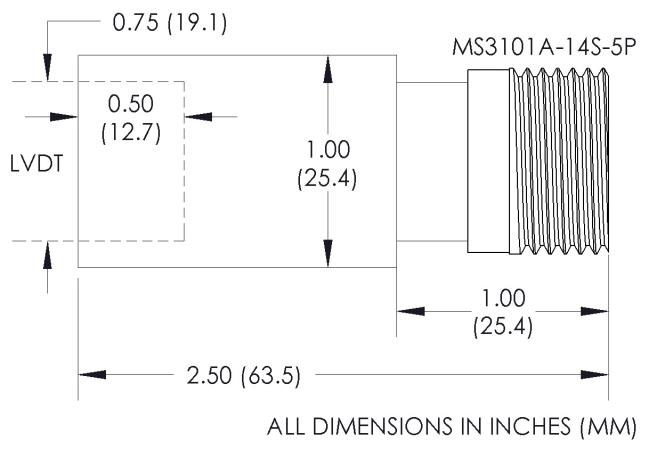

| X0012 | REPLACE LEADS WITH AN INTEGRAL CONNECTOR TYPE MS3101A-14S-6P; ADAPTOR FOR CONNECTOR HAS 1.00” O.D.; MATING CONNECTOR INCLUDED; REFER TO SCHEMATIC ABOVE FOR COLOR CODE REFERENCE; CONNECTOR PINOUT: A – YELLOW, B – WHITE, C – BLACK, D – GREEN, E – BLUE, F – RED |
